Discover Our Latest Innovations for Industrial Automation

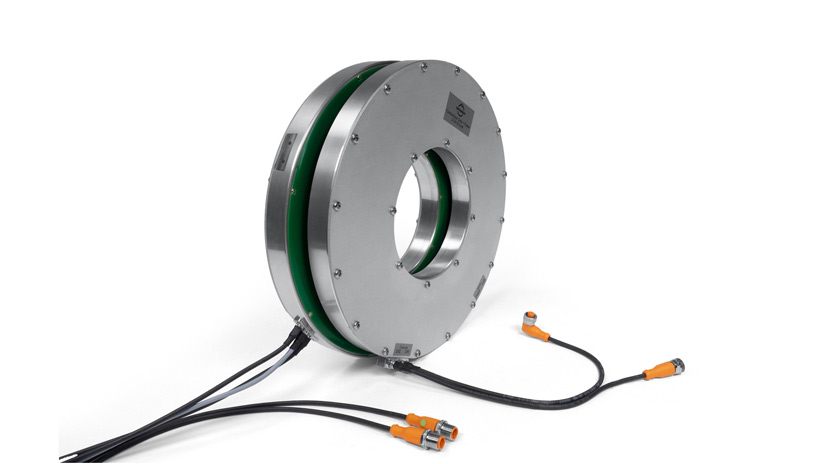

SPINNER 637491

Contactless Data and Power Transmission Replace Slip Rings

The new compact transmission systems from SPINNER ingeniously combine contactless data transfer, which has proved itself in real-time bus systems, with the ability to supply up to 750 watts of power at 24 V and 48 V industrial voltages.

Learn more

SPINNER 549594C0701

Standard and Customized FORJs
Up to 109 Channels – any Fiber Type

SPINNER’s multichannel fiber-optic solutions are absolutely state-of-the-art. They include upto 109-channel single mode fiber-optic rotary joint (x.60 SLAT type) that has been specially developed for industrial, offshore (FPSO) and wind applications.

Learn more



SPINNER 637427C0007

Contactless Data Transmitter with 100mm Clear Internal Diameter

Contactless data transmitters for rotating systems have a wide range of uses. They are especially beneficial for ensuring reliable transmission whenever slip rings are inadequate due to large system diameters and/or data volumes.

Learn more

SPINNER 6374KME1

Upcoming New Design for Contactless Data and Power Transmission in High-Speed Rotating Applications

Upcoming new high-speed transmission systems from SPINNER ingeniously combine contactless data transfer for slow, simple data rates with the ability to supply up to 50 watts of power.

Learn more




Contactless Data and Power Transmission Replace Slip Rings

SPINNER 637491

Contactless data delivers clear benefits in rotating systems whenever slip rings can’t meet requirements due to large diameters, high data volumes and/or infrequent maintenance.

This is also true of contactless power transfer systems with hollow cores: they’re preferable whenever failsafe, uninterrupted (24/7) operation is essential at high rotational speeds.

Combined Data and Power Transmitters up to 750 W

The new compact transmission systems from SPINNER ingeniously combine contactless data transfer, which has proved itself in real-time bus systems, with the ability to supply up to 750 watts. As an added benefit, there is room in the hollow cores for device-specific connections to the rotating unit.

Learn more



Contact us to e-meet with one of our specialists




Contactless Rotary Joints for Data Transmission with 100 mm Clear Internal Diameter



SPINNER 637427C0007

Two trends are dominating industry: increasing digitization of machines and systems and automation of processes, in everything from production across logistics to packaging. In all of these situations, it is imperative to ensure maximum efficiency and prevent failures. Rapidly rotating machine parts, like those found in bottling and paper converting plants, pose special challenges. Dependable data transmission is also essential for enabling real-time control and regulation of these machines.

Unlike slip rings, contactless rotary joints from SPINNER also ensure reliable data transmission with large diameters and high data transmission rates. This can’t be achieved with slip rings, which are prone to micro-interruptions, especially with large clear internal diameters.

Learn more



Contact us to e-meet with one of our specialists




Standard and Customized FORJs – Up to 109 Channels

SPINNER FORJs

SPINNER is one of the world’s leading manufacturers of high-performance rotary joints. Fiber-optic rotary joints (FORJs) in particular require exacting optical and mechanical manufacture. And SPINNER ideally meets these requirements. We provide all of the mechanical and optical parts in top quality from a single source.

We also supply combinations of fiber optic rotary joints with radio frequency (RF) rotary joints, contactless power transmission modules, slip rings, multi-media joints and contactless data transmission. Our specialties also include integrated data and power transmission solutions with a small form factor.

Fiber Optic Core Features

Optical Performance Parameters:

  • Low insertion loss
  • High return loss values
  • Low variation while rotating

Optical Parameter Tracking While Rotating

  • Narrow insertion loss band across all channels of a multi-channel fiber optic rotary joint
  • Multi-channel fiber optic rotary joints provide excellent phase stability

Fiber Types

  • Single-mode E9/125 µm (OS1,OS2)
  • Multi-mode G50/125 µm, also G62.5/125 µm (OM1-OM4)
  • Special fibers, e.g. for low bending radiuses or large-core fibers

Environmental Conditions

  • IP code protection for harsh environmental conditions
  • High-temperature capability for implementation in RF systems
  • Hydrostatic pressure capability for deep-sea applications

ISO Class 7 Cleanroom Environment for Fiber Optics

All fiber-optic components are assembled in an ISO Class 7 cleanroom environment and 100% tested.

SPINNER CleanroomClean rooms with 18 and 100 m2 of space are available

Learn more

>



Contact us to e-meet with one of our specialists




Upcoming New Design for Contactless Data and Power Transmission in High-Speed Rotating Applications

Contactless data transmission delivers clear benefits in high-speed rotating systems when slip rings are unable to meet requirements due to mechanical constraints on their speed and/or frequent maintenance.

This also applies to contactless power transfer systems with hollow cores, which are preferable for ensuring failsafe, uninterrupted (24/7) operation at high rotational speeds.

SPINNER 6374KME1

Upcoming new high-speed transmission systems from SPINNER ingeniously combine contactless data transfer, for slow simple data rates, with the ability to supply up to 50 watts of power. As an added benefit, there is room in the hollow cores for device-specific connections to the rotating unit.

The speed of the system depends only on the customer drive system, since the SPINNER unit does NOT have its own bearing.

Features

Data transmission:

Transmittable protocols / BUS systems:

  • IO–Link
  • RS 422 or
  • Slow data rates in general
  • Multible channels possible

Power transmission:

  • Max. transmittable power: 24 V/50 W,
  • Regulated output voltage with low ripple
  • Flexible design regarding the size of the inner diameters
  • High-speed rotation dependent on the customer's bearing or drive
  • Operation independently of the speed and direction of rotation
  • Highly efficient



Contact us to e-meet with one of our specialists
