SPINNER Launches Extremely Compact DAB Low Power Filters and Combiners

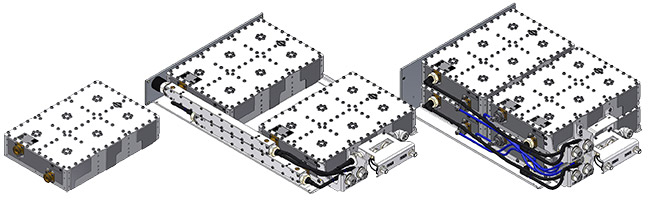

Spinner DAB Low Power Filter and Combiner

SPINNER has launched a complete family of small filters, starpoint and  CIB combiners for low power DAB. The size is optimized to fit into 19” racks with a height of 2 rack units only.

To avoid the usual disadvantages of small filters like high insertion loss and instability SPINNER has reduced the height only and kept the cavities at a reasonable size.





The new and small filters and combiners for Low Power DAB can fulfill nearly all requirements:

•    Non-adjacent blocks can be combined via starpoint combiners.
•    Adjacent blocks can be combined via CIB combiners (NB power rating reduced).
•    A triple of 3 adjacent blocks can be combined via a 2-way starpoint followed by a CIB for the centre block.
•    More than 4 blocks can be combined via subsequent CIB combiners.
•    All filters and combiners can be equipped with accessories like 19” mountings, monitoring couplers or front plates.

The filters and combiners cover the typical DAB frequency range 216 – 240 MHz (11A – 13F) and provide mask filtering for all narrow band inputs.

 Article no.

 Function

 Input Power

 Size

 BN 617117C1025     Mask filter        100 W         2 RU x 19" x 265 mm
 BN 574943  2-way CIB combiner   NB 200 W + WB 1000 W     2 RU x 19" x 675 mm
 BN 574910  2-way starpoint combiner      2 x 100 W  2 RU x 19" x 610 mm
 BN 574986  3-way starpoint combiner     3 x 100 W  4 RU x 19" x 610 mm
 BN 574987  4-way starpoint combiner     4 x 100 W  4 RU x 19" x 610 mm



SPINNER Low Power DAB CombinerCompact DAB Low Power Filters and Combiners

Combiner for 3 adjacent DAB blocks with all ports at the rear side and output monitoring coupler
